PlotBuilder guide

PlotBuilder converts completed calculation results into backend-neutral render definitions. PlotBuilder.make_render does not load Makie or repeat a numerical calculation.

Definitions

The public definitions are:

  • HarmonicImpedancePlotDefinition
  • NetworkDiagramDefinition
  • NyquistPlotDefinition
  • BodePlotDefinition
  • PassivityPlotDefinition
  • SmallGainPlotDefinition
  • EigenvaluePlotDefinition
  • UnstableFrequencyPlotDefinition
render = PlotBuilder.make_render(
    NyquistPlotDefinition,
    completed_nyquist;
    zoom = true,
)

A RenderDefinition contains PageDefinition values. Each page contains its layout, views, controls, legend, colorbars, status, and export definition. Views contain typed axes and series. Supported series primitives include lines, scatter markers, horizontal and vertical references, and bands.

Network diagrams

NetworkDiagramDefinition accepts a materialized NetworkState and an optional completed PowerFlowResult. The GraphMakie extension resolves its typed projection and deterministic layout once, then retains that state as a custom PlotBuilder primitive. Standalone diagram rendering and PlotBuilder therefore share glyphs, roles, positions, and selection behavior.

using NetworkLayout

render = PlotBuilder.make_render(
    NetworkDiagramDefinition,
    network;
    powerflow,
    graph_layout = NetworkLayout.Stress(seed = 1),
)

The built page has a single full-width canvas, no legend, and only linear axes, so its toolbar contains reset and SVG export without logarithmic-scale toggles. Its default figure_size = :auto is resolved from the network-layout bounds so the initial window follows the diagram aspect instead of leaving a large empty canvas. Explicit pixel dimensions remain supported. The resulting UIPlot retains the exact diagram handle at artifacts[:network_diagram].

Harmonic impedance

The harmonic definition accepts primitive and composite completed frequency responses. It supports diagonal, complete-matrix, and selected entries. The layout can overlay curves or separate them into panels and pages. Frequency axes may be linear or logarithmic, with node labels and dBΩ conversion.

render = PlotBuilder.make_render(
    HarmonicImpedancePlotDefinition,
    impedance_result;
    entries = :all,
    grouping = :panels,
)

Stability definitions

Stability definitions accept StabilityResult, ParametricResult{<:StabilityResult}, and supported uncertainty results. Composite definitions read completed trajectories from details.plot_data.

Nyquist renders matched modes, conjugate branches, reference geometry, direction markers, indentation gaps, zoom, ensemble traces, and quantile spread. Bode renders aligned magnitude and phase channels. The other definitions preserve passivity bands, small-gain references, eigenvalue views, the optional determinant page, and unstable-frequency markers and aggregate probabilities.

The gallery uses completed scalar responses so the figures are quick to rebuild. The same definitions accept results from full network calculations and composite studies.

using CairoMakie
using PowerImpedance

frequency_hz = 10.0 .^ range(0, 3; length=240)
omega = 2π .* frequency_hz

series_rlc = 0.35 .+ im .* (omega .* 2.5e-3 .- 1 ./ (omega .* 45e-6))
impedance_response = FrequencyResponseResult(
    NodalImpedance(),
    :nodal_impedance,
    reshape(series_rlc, 1, 1, :),
    omega,
    [:terminal],
    nothing,
    (;),
)

only(PowerImpedance.plot(
    impedance_response;

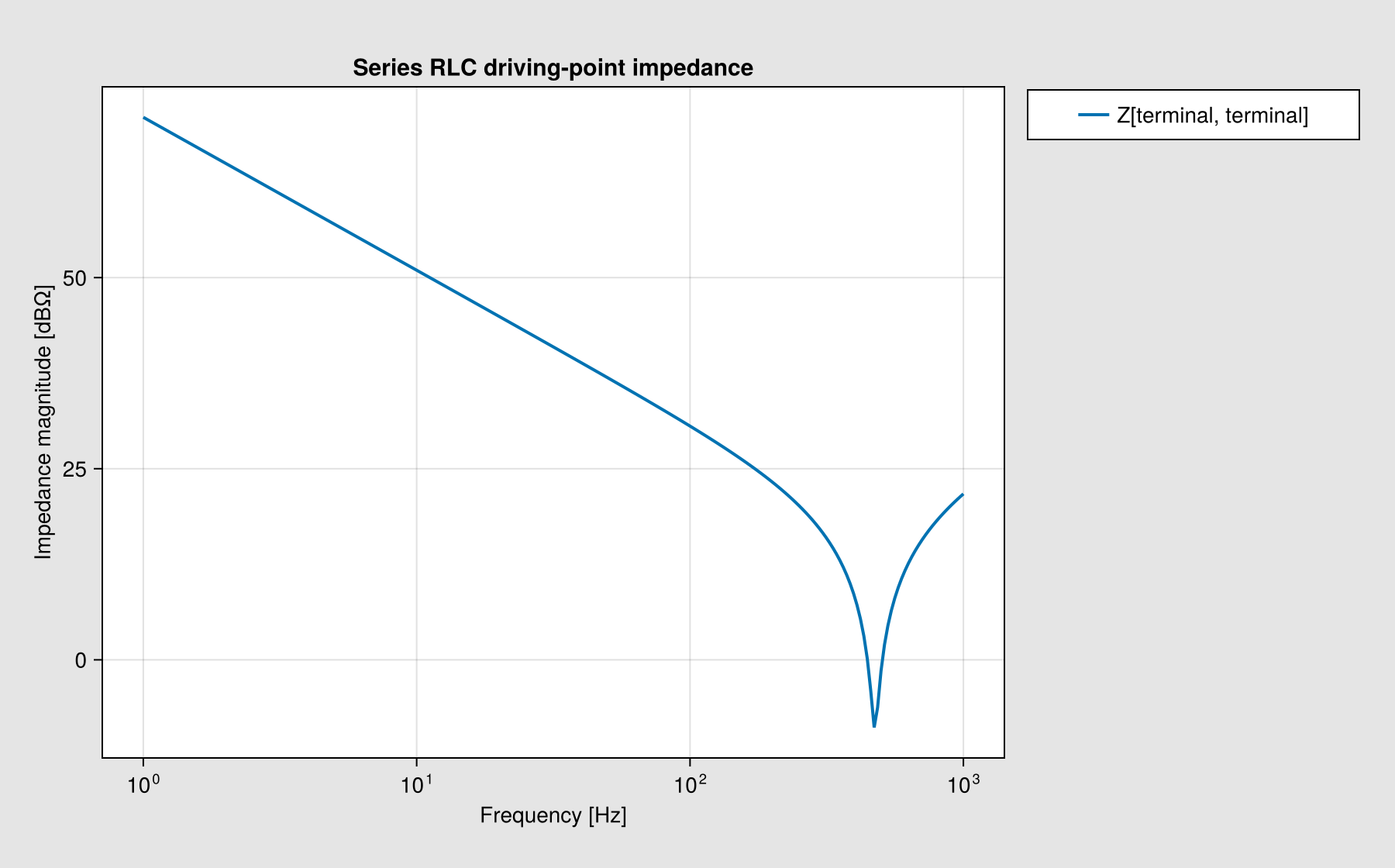

    title="Series RLC driving-point impedance",
    display_plot=false,
    controls=false,
)).figure
Example block output

The generalized Nyquist and Bode figures below use one completed loop-gain sweep.

theta = range(-0.95π, 0.95π; length=length(omega))
loop_locus = -0.15 .+ 0.92 .* exp.(im .* theta)
loop_response = FrequencyResponseResult(
    LoopGain(),
    :loopgain,
    reshape(loop_locus, 1, 1, :),
    omega,
    [:mode],
    nothing,
    (;),
)
nyquist_result = compute(StabilityProblem(loop_response), GeneralizedNyquist())

only(PowerImpedance.plot(
    nyquist_result;

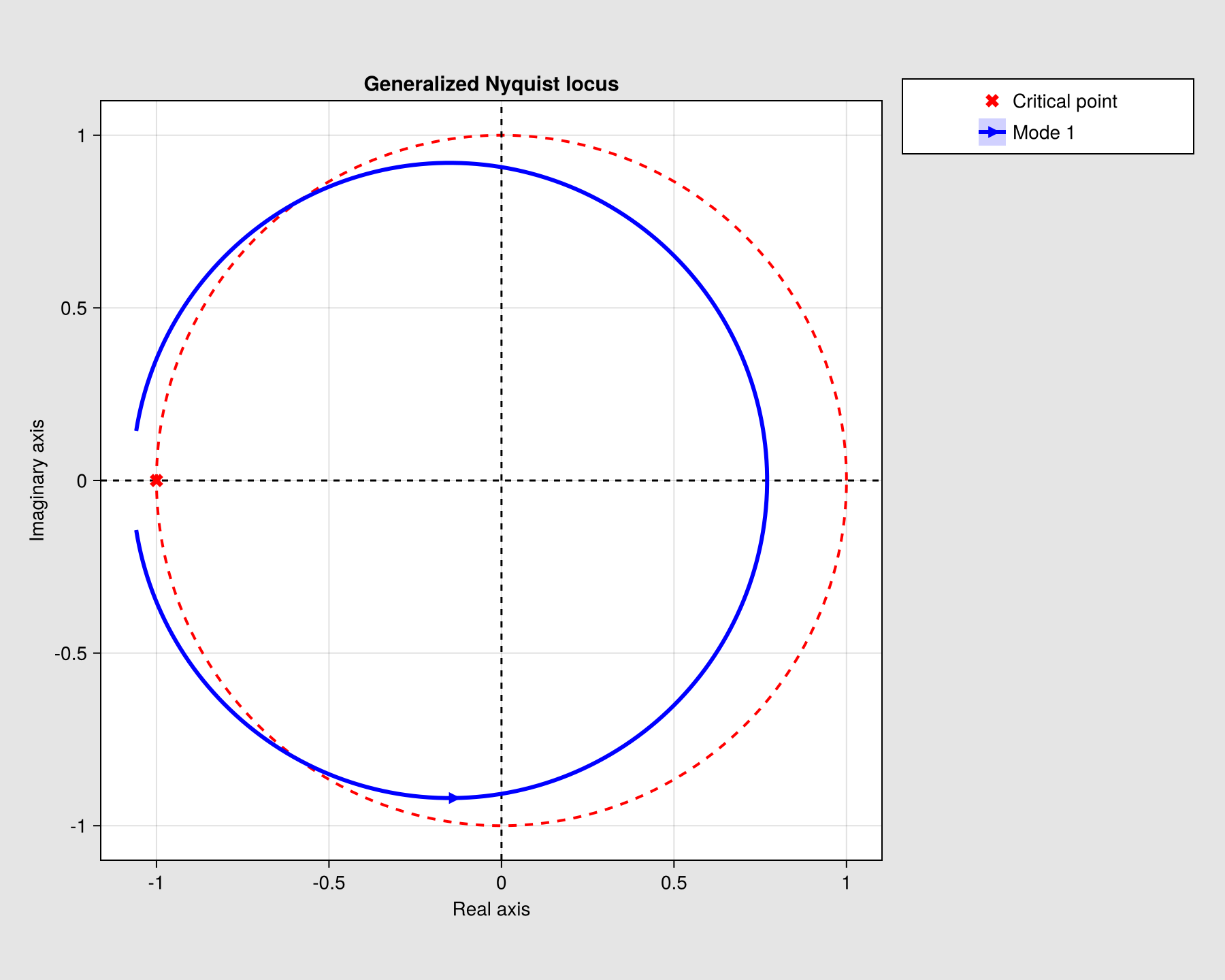

    title="Generalized Nyquist locus",
    display_plot=false,
    controls=false,
)).figure
Example block output
bode_result = compute(StabilityProblem(loop_response), BodeAnalysis())

only(PowerImpedance.plot(
    bode_result;

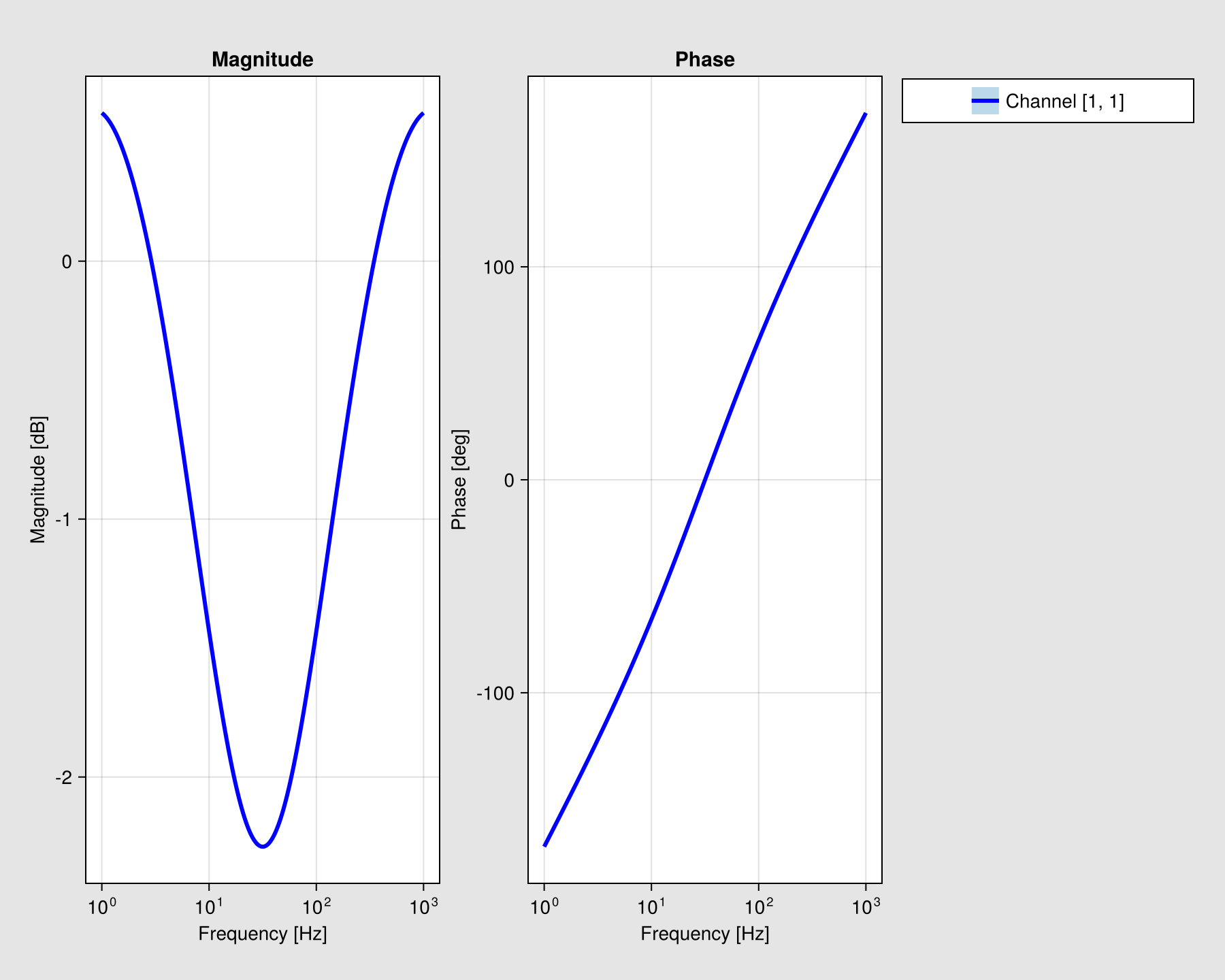

    title="Loop-gain magnitude and phase",
    display_plot=false,
    controls=false,
)).figure
Example block output

Passivity and modal plots consume a completed nodal-admittance sweep.

admittance_response = FrequencyResponseResult(
    NodeAdmittance(),
    :node_admittance,
    reshape(1 ./ series_rlc, 1, 1, :),
    omega,
    [:terminal],
    nothing,
    (;),
)
passivity_result = compute(StabilityProblem(admittance_response), PassivityAnalysis())

only(PowerImpedance.plot(
    passivity_result;

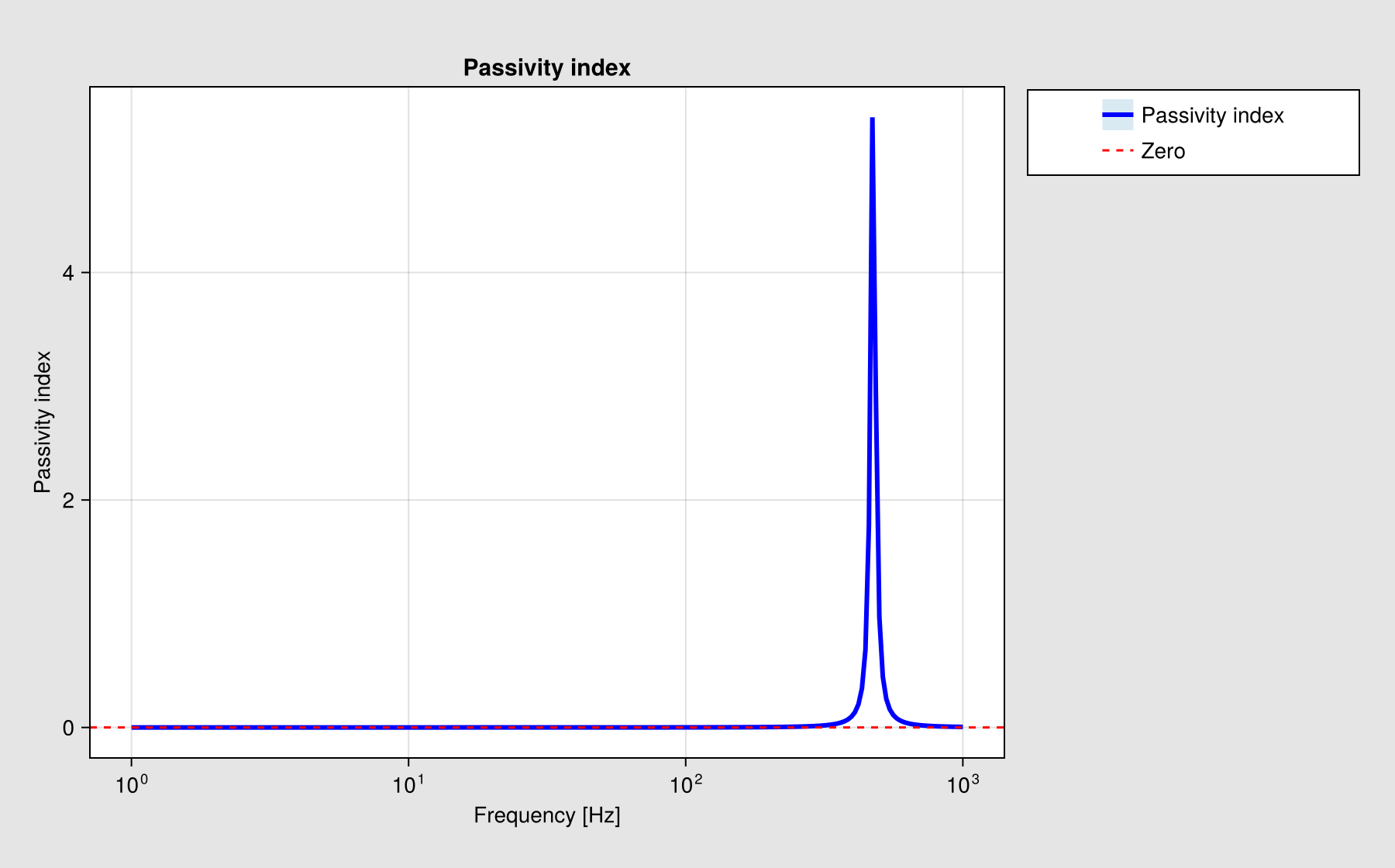

    title="Passivity index",
    display_plot=false,
    controls=false,
)).figure
Example block output
eigenvalue_result = compute(
    StabilityProblem(admittance_response),
    EigenvalueAnalysis(fmin=1.0, fmax=1e3, determinant=true),
)

first(PowerImpedance.plot(
    eigenvalue_result;

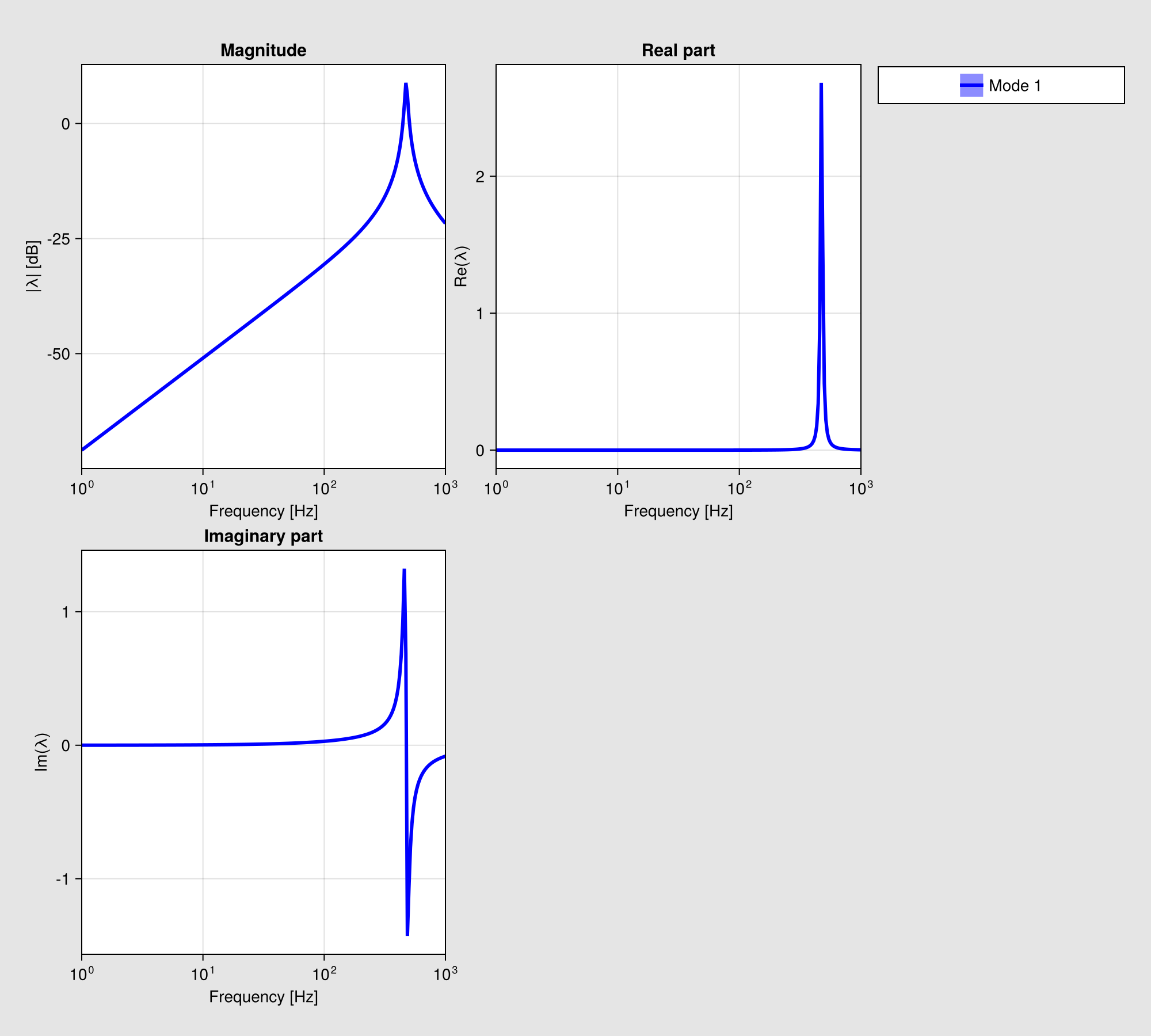

    title="Admittance eigenvalue",
    display_plot=false,
    controls=false,
)).figure
Example block output

The small-gain and frequency-detection definitions use the same completed sweeps.

small_gain_result = compute(
    StabilityProblem((impedance_response, admittance_response)),
    SmallGainAnalysis(),
)

only(PowerImpedance.plot(
    small_gain_result;

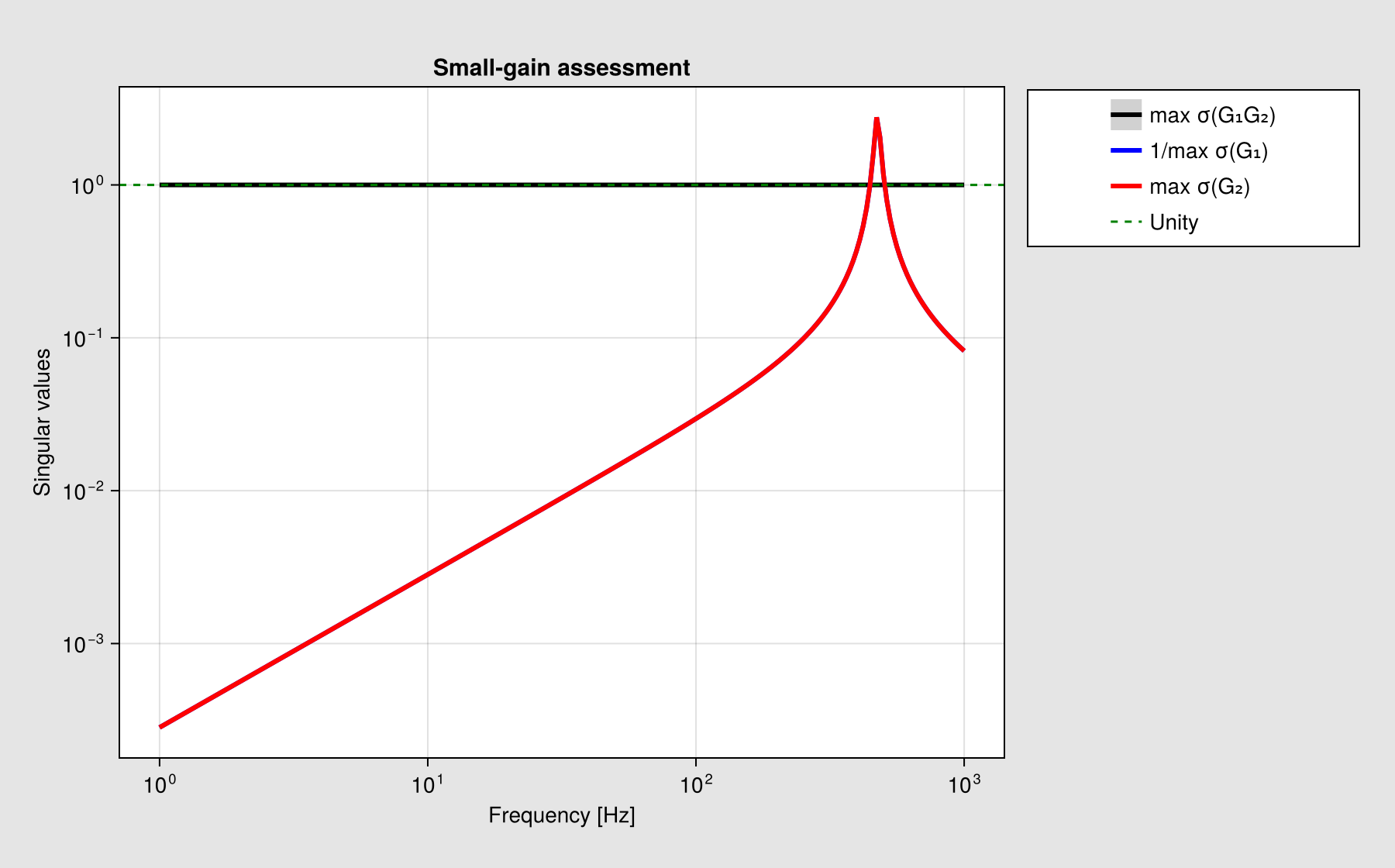

    title="Small-gain assessment",
    display_plot=false,
    controls=false,
)).figure
Example block output
detected_result = compute(
    StabilityProblem(loop_response),
    UnstableFrequencyAnalysis(order_maxima=3),
)

only(PowerImpedance.plot(
    detected_result;

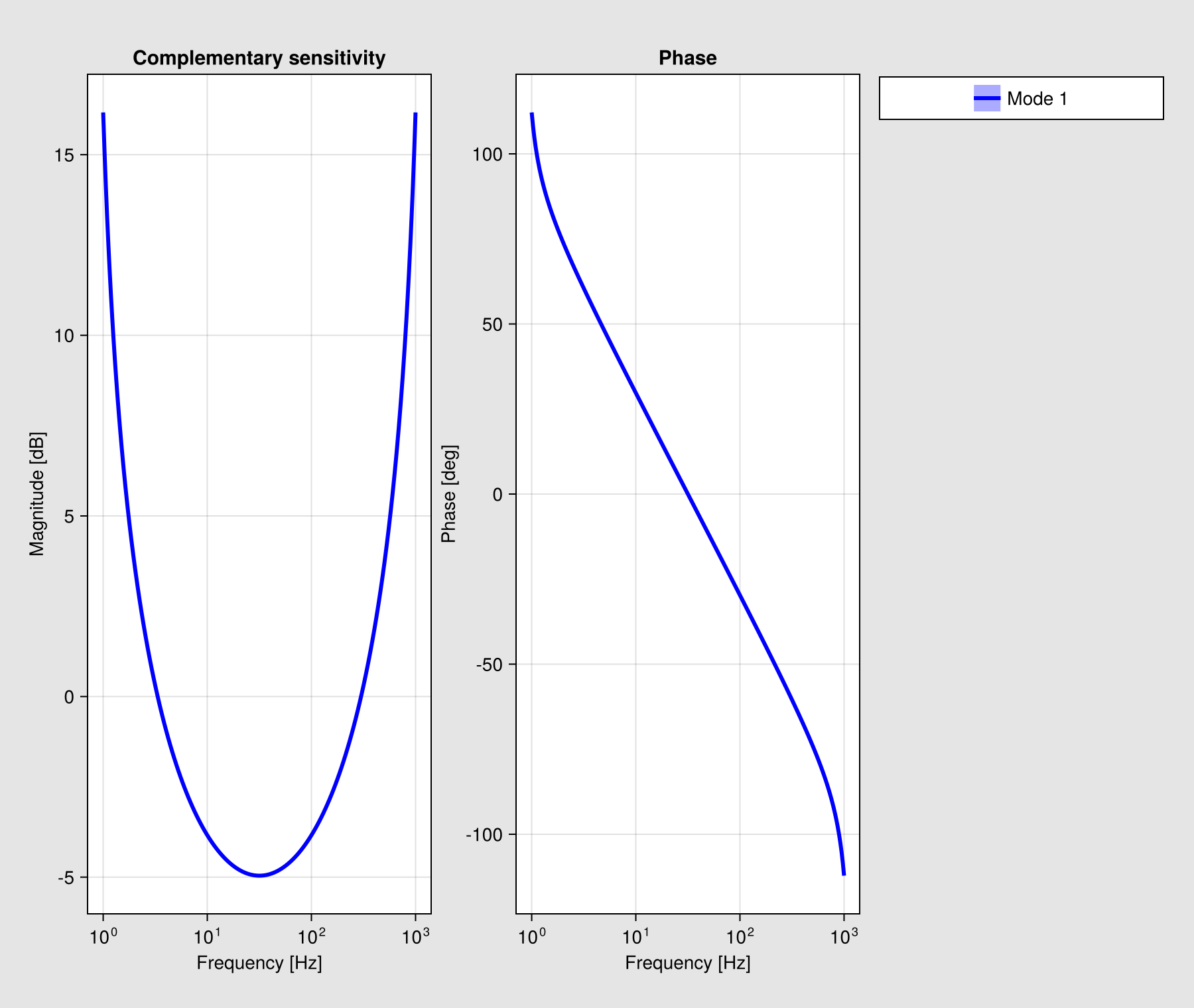

    title="Complementary-sensitivity peaks",
    display_plot=false,
    controls=false,
)).figure
Example block output

Makie rendering

Install and load one backend:

using PowerImpedance
using CairoMakie

handles = PowerImpedance.plot(result; display_plot = false)
handle = only(handles)

CairoMakie produces static output. GLMakie and WGLMakie provide interactive controls for reset, scale switching, legend visibility, and export. The layout responds to figure resizing.

Controls are recipe-dependent: network diagrams keep reset and export while omitting scale switches and legends.

PowerImpedance.plot and Makie.plot select a definition from the result kind or analysis. Bode plotting can add completed series to an existing UIPlot or a vector of UIPlot handles through the plots keyword.

SVG export

export_svg(
    handle;
    path = "stability.svg",
    theme = :publication,
    open_file = false,
)

Existing paths are not overwritten. Omitting path creates a timestamped name. Export uses CairoMakie while retaining current scales, limits, and series visibility.

Custom definitions

Custom recipes subtype PlotBuilder.AbstractPlotDefinition and specialize the grammar accessors for accepted input, axes, series, grouping, layouts, controls, and export. Use the Definition suffix for data-model types and the matching *_definition accessor names.
